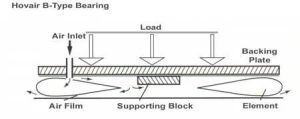

CLICK HERE TO CONTACT US!      B-type Air Bearings                                                                                                                                                                 Hovair B-type air bearings are designed to lift loads vertically off their base, then move laterally across floor surfaces to their destination, then dropped into position. They function the same as A-type bearings, but lift two to three times as much when pressurized.Cross-section of a B-type air bearing.The three stages of a B-type air bearingBenefits of using b-type air bearings include:
  • B-type bearings consist of a two-piece vulcanized body that is glued to an aluminum backing plate. This rubber diaphragm can give a relatively high lift and operates at higher air pressure.
  • B-type bearings are preferred where low collapsed height, high lift, and capacity per square inch are more important than wear, stability, and air consumption efficiency.
  • Glued assemblies are repairable when compared to other air bearings that are vulcanized or riveted to the backing plate
  • Superior lift height over the A-type bearing. The B-type bearing is able to lift a load up to three times the lift height of the A-type bearing, thus making it possible to engage a load using a "lift & pick" movement similar to a regular pallet truck.
  • B-type bearings stabilize at 30 psi instead of 15 psi. This enables load capacities of double the A-type bearing for the same size air bearing, but requires three times the air consumption.
  • B-type bearings are also available for air pallets, platform transporters, and air beams. These products offer a broad selection when choosing the right bearing for the job.

Be sure to contact us for assistance in choosing the right air bearing for your particular job.

Click the link for comprehensive information on all types of air bearings: Air Bearing Configurations
